卷積類神經網絡辨識MNIST影像

August 29, 2024

Convolution 在中文翻譯中,有稱為捲積、疊積、褶積、旋積、或卷積,也許是據其操作方法所做的翻譯,輸入向量如同卷軸般的分段移動,而後再將這些小段與Kernel向量做內積運算。 所以CNN有時被譯為「卷積(類)神經網絡」,因為CNN的字元數較少,我們偏好使用CNN,但當語意需要時,有時仍會使用「卷積(類)神經網絡」。

在此文我們將以MNIST的資料集為例子來展示使用CNN的做多類別的影像辨識工作。相對來說MNIST資料集的資料量小(訓練組僅有60,000筆),且影像內容簡單(28 x 28),即使使用簡單的MLP模型也可以達到超過90%的成功率,此文的主要目的有二:

  1. 示範如何使用CNN進行影像辨識,
  2. 比較MLP和CNN模型的總參數數量。

預處理MNIST資料集

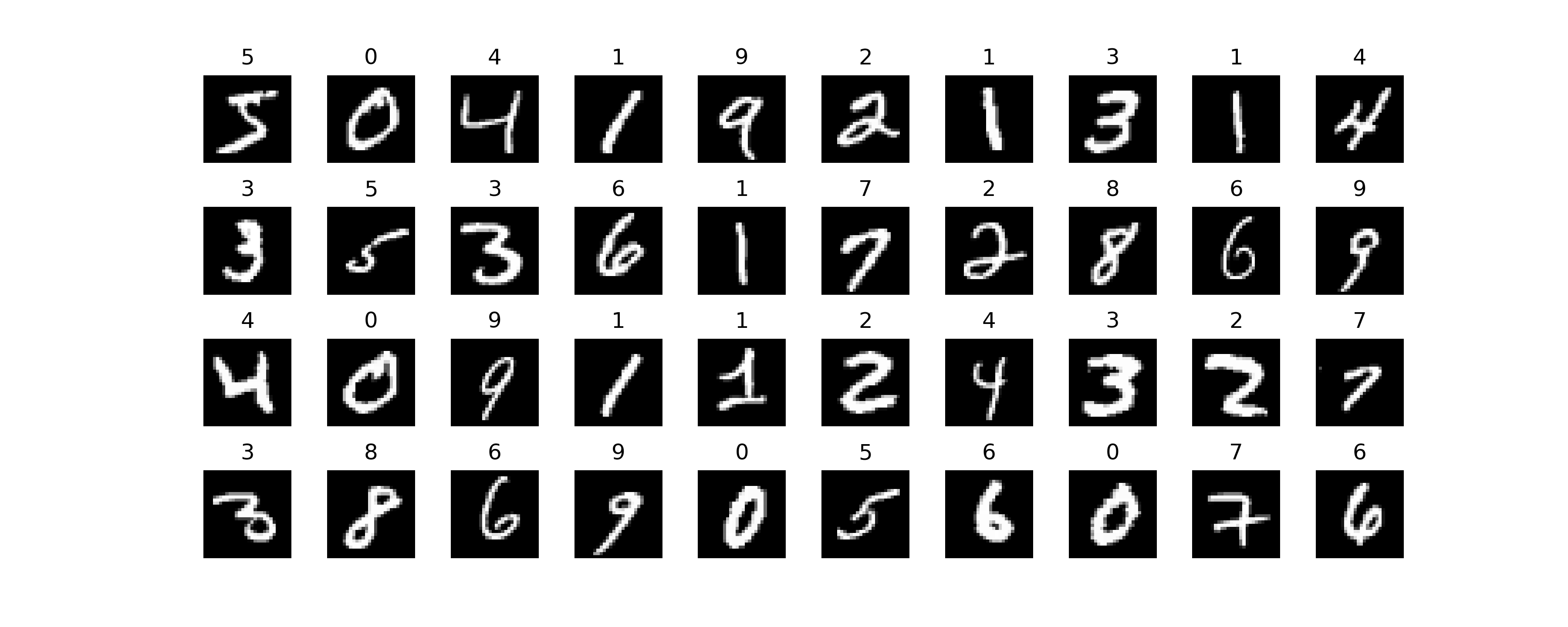

首先我們先檢視40張MNIST的圖檔。

MNIST

雖然MNIST資料集已伴隨在常用的機器學習套件中,在這裡我們練習如何直接從影像的壓縮檔中載入資料,以及前處理的方法,我們直接讀取原始資料集的gz檔,將之重新整理為28 x 28的矩陣,之後再將之分為訓練組、驗證組及測試組,

from utils import mnist_reader
from utils.helper import invert_grayscale
import sys
import numpy as np
import pickle as pkl


DATA_DIR = "../data/MNIST"


def convert2image_format(image):
    mnist_digits = image
    X0 = np.reshape(mnist_digits, (-1, 28, 28))
    X0_ = invert_grayscale(X0)
    out = X0_[0, :, :]
    return out


def split_train_and_valid(data_path, train_ratio=0.80):
    # Mitigate the Python rounding error problem
    val_ratio = round(1 - train_ratio, 2)

    X0_test, Y0_test = mnist_reader.load_mnist(path=data_path, kind="t10k")
    X0, Y0 = mnist_reader.load_mnist(path=data_path, kind="train")

    X1_test = np.array([convert2image_format(element) / 255 for element in X0_test])
    X1 = np.array([convert2image_format(element) / 255 for element in X0])

    nsample = X0.shape[0]
    train_size = int(train_ratio * nsample)
    val_size = int(val_ratio * nsample)

    X_train = X1[:train_size, :]
    X_val = X1[train_size : train_size + val_size, :]

    Y_train = Y0[:train_size]
    Y_val = Y0[train_size : train_size + val_size]

    X_test = X1_test
    Y_test = Y0_test

    print("The size of the train, validation and test are: ")
    print(X_train.shape, X_val.shape, X_test.shape)
    print(Y_train.shape, Y_val.shape, Y_test.shape)

    return X_train, X_val, X_test, Y_train, Y_val, Y_test


if __name__ == "__main__":
    # python3 preprocess_data.py

    if len(sys.argv) > 1:
        train_ratio = float(sys.argv[1])
        print(f"Argument provided: {train_ratio}")
    else:
        print("No arguments provided.")

    X_train, X_val, X_test, Y_train, Y_val, Y_test = split_train_and_valid(
        DATA_DIR, train_ratio
    )

    with open("tmp_data/mnist_data.pkl", "wb") as file_obj:
        pkl.dump((X_train, X_val, X_test, Y_train, Y_val, Y_test), file_obj)

下一步,得到預處理的的資料後,我們分別訓練一組MLP模型及一組CNN模型。兩組程序都使用30次遞迴。

python3 fit_cnn_model.py 30
python3 fit_mlp_model.py 30

完成後,我們使用pickle及keras.model的套件將訓練結果載入分析。

import pickle as pkl
from keras.models import load_model

# history
with open('models/cnn_mnist_history.pkl', 'rb') as file_obj:
    cnn_history = pkl.load(file_obj)

with open('models/mlp_mnist_history.pkl', 'rb') as file_obj:
    mlp_history = pkl.load(file_obj)

cnn_model = load_model("models/cnn_mnist_model.keras")
mlp_model = load_model("models/mlp_mnist_model.keras")

with open("tmp_data/mnist_data.pkl", "rb") as file:
    X_train, X_val, X_test, Y_train, Y_val, Y_test = pkl.load(file)

CNN 使用了6040個參數,而MLP使用了 16020個參數。

cnn_model.count_params(), mlp_model.count_params()

兩組模型都使用了四層神經層。

cnn_model.summary()
mlp_model.summary()

┏━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
 Layer            Output Shape                  Param #
┡━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
 conv2d           (None, 28, 28, 3)                 150
├─────────────────┼────────────────────────┼───────────────┤
 max_pooling2d    (None, 14, 14, 3)                   0
├─────────────────┼────────────────────────┼───────────────┤
 flatten          (None, 588)                         0
├─────────────────┼────────────────────────┼───────────────┤
 dense            (None, 10)                      5,890
└─────────────────┴────────────────────────┴───────────────┘

┏━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
 Layer            Output Shape                  Param #
┡━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
 flatten          (None, 784)                         0
├─────────────────┼────────────────────────┼───────────────┤
 dense            (None, 20)                     15,700
├─────────────────┼────────────────────────┼───────────────┤
 dense_1          (None, 10)                        210
├─────────────────┼────────────────────────┼───────────────┤
 dense_2          (None, 10)                        110
└─────────────────┴────────────────────────┴───────────────┘

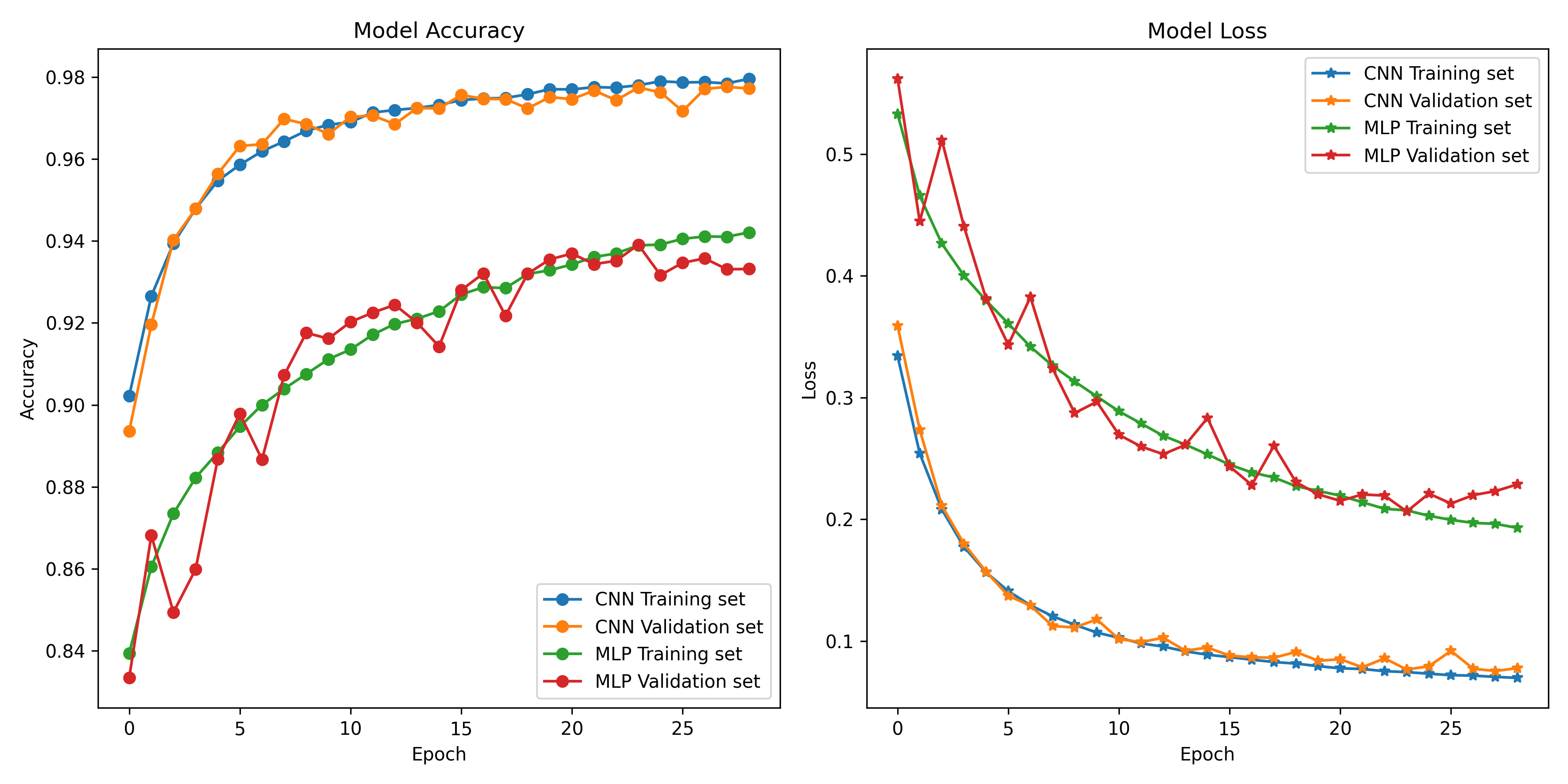

雖然使用了較少的參數,CNN表現比MLP高了約3.5個百分點;在10,000張測試組的圖片中,CNN誤認了233圖片,而MLP誤認了555張圖片。

cnn_model.evaluate(X_test, Y_test)
mlp_model.evaluate(X_test, Y_test)
# accuracy: 0.9710 - loss: 0.0913
# accuracy: 0.9360 - loss: 0.2251

CNN_v_MLP

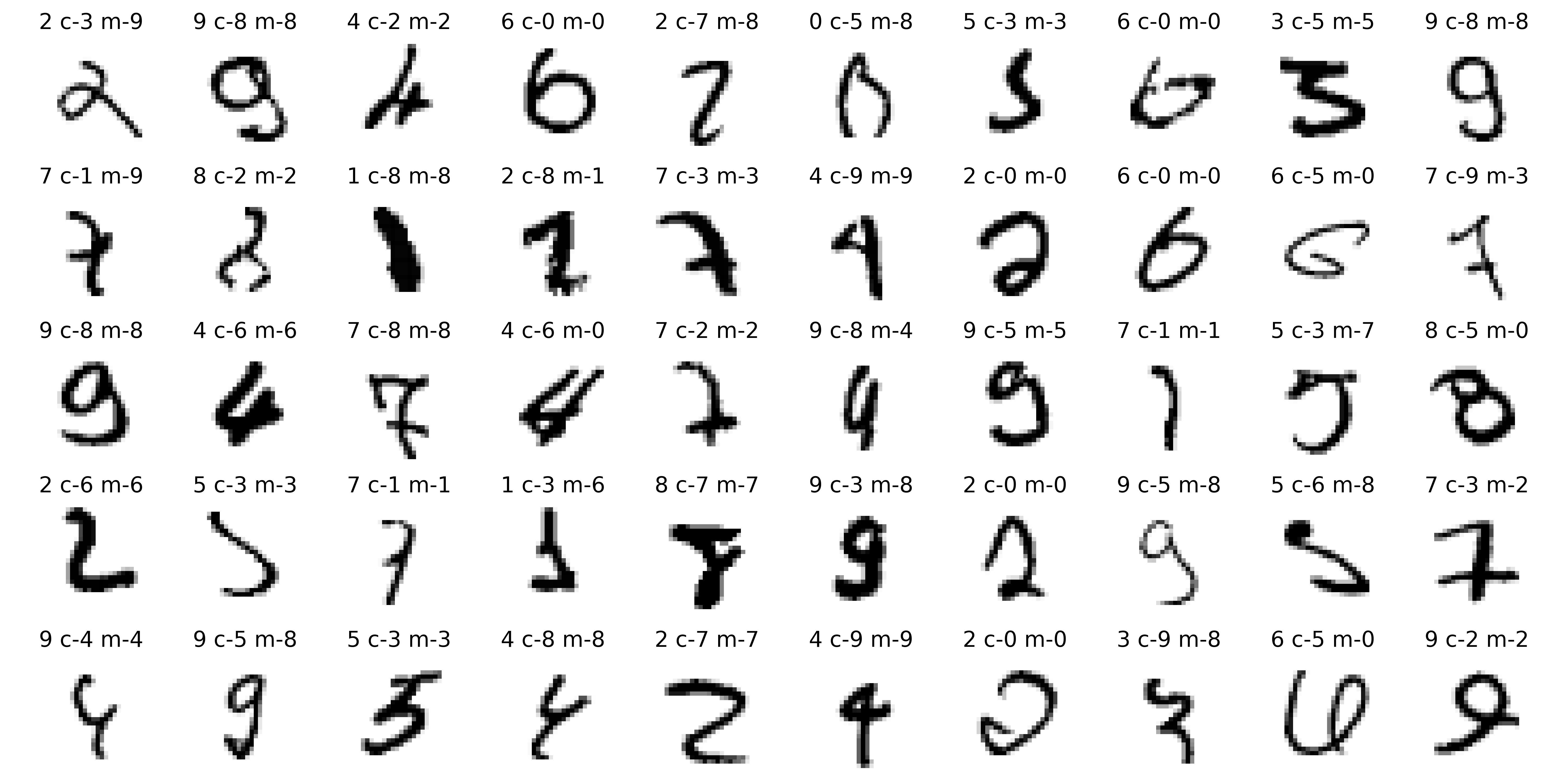

最後讓我們來檢視100張誤認的影像,左上角的2被CNN辨識為3,而MLP辨識為9,第一行第二欄的9被兩個模型都辨識為8,第一行第三欄的4,兩模型都辨識為2。第一行第四欄的6,兩模型都辨識為0,若請一位有經驗的銀行行員來辨識,或許他(她)可以正確的辨識這些數字。

有趣的是第三行第八欄的7被兩模型都辨識為1,這個例子似乎有些困難,或許有經驗的工作人員將之判定為7。

error_inferece

結語

在面對類似的影像辨識作業時CNN所需要最佳化的參數總量小於相近的MLP模型,因此當分析影像愈來愈複雜時,單一影像檔所輸入的特徵值必然增多,因此在可用的方法及工具不變的情況下,若要達到類似的高辨識率,我們必須設置更多層的類神經網絡,且每一層網絡必然會有更多的節點,因此採用CNN成為較經濟的方法。

即使在此資料集中,一個簡易的CNN模型已經達到了超過97%的正確率,但在某些要求極高的應用場景,例如銀行匯兌,即使只有不到3%的錯誤率,也可能造成巨大的損失。我們可增加CNN模型的複雜度並採用Dropout的方法可以達到99.1% (驗證組)及98.8%(測試組)的正確率。

model = keras.models.Sequential(
    [
        keras.layers.Conv2D(
            filters=32,
            kernel_size=7,
            activation="relu",
            padding="SAME",
            input_shape=[28, 28, 1],
        ),
        keras.layers.MaxPooling2D(2),
        keras.layers.Conv2D(
            filters=128, kernel_size=3, activation="relu", padding="SAME"
        ),
        keras.layers.MaxPooling2D(pool_size=2),
        keras.layers.Flatten(),
        keras.layers.Dense(units=128, activation="relu"),
        keras.layers.Dropout(0.5),
        keras.layers.Dense(units=64, activation="relu"),
        keras.layers.Dropout(0.5),
        keras.layers.Dense(units=10, activation="softmax"),
    ]
)

附錄

一、MLP及CNN的 Python 程式碼

import numpy as np
import argparse
from tensorflow import keras
import pickle as pkl


if __name__ == "__main__":
    # python3 fit_mlp_model.py "tmp_data/mnist_data.pkl" "models/mlp_mnist_history.pkl" "models/mlp_mnist_model.keras" --nepoch 30

    # python3 fit_mlp_model.py "tmp_data/fashion_mnist_data.pkl" "models/mlp_fashion_mnist_history.pkl" "models/mlp_fashion_mnist_model.keras" --nepoch 30

    parser = argparse.ArgumentParser(description="Process MNIST data")
    parser.add_argument("data_path", type=str, help="Path to the data file")
    parser.add_argument("output_path", type=str, help="Path to the stored data file")
    parser.add_argument("model_output", type=str, help="Path to the model description")
    parser.add_argument("--nepoch", type=int, default=30, help="Number of epoch")

    args = parser.parse_args()
    DATA_DIR = args.data_path
    OUTPUT_DIR = args.output_path
    MODEL_DIR = args.model_output
    nepoch = args.nepoch

    print(f"Data path provided: {DATA_DIR}")
    print(f"Data were stored: {OUTPUT_DIR}")
    print(f"Model was stored: {OUTPUT_DIR}")
    print(f"The number of epoch: {nepoch}")


    with open(DATA_DIR, "rb") as file:
        X_train, X_val, X_test, Y_train, Y_val, Y_test = pkl.load(file)

    model = keras.models.Sequential(
        [
            keras.layers.Flatten(input_shape=[28, 28, 1]),
            keras.layers.Dense(20, activation="relu"),
            keras.layers.Dense(10, activation="relu"),
            keras.layers.Dense(10, activation="softmax"),
        ]
    )

    print(model.summary())
    print("Total number of the parameters is: ", model.count_params(), "\n")

    model.compile(
        loss="sparse_categorical_crossentropy", optimizer="sgd", metrics=["accuracy"]
    )

    history = model.fit(X_train, Y_train, epochs=nepoch, validation_data=(X_val, Y_val))

    print("Evaluating the test set:\n")
    model.evaluate(X_test, Y_test)

    with open(OUTPUT_DIR, "wb") as file_obj:
        pkl.dump(history, file_obj)

    model.save(MODEL_DIR)

import numpy as np
import argparse
from tensorflow import keras
import pickle as pkl

if __name__ == "__main__":
    # python3 fit_cnn_model.py "tmp_data/mnist_data.pkl" "models/mlp_mnist_history.pkl" "models/mlp_mnist_model.keras" --nepoch 30
    # python3 fit_cnn_model.py "tmp_data/fashion_mnist_data.pkl" "models/mlp_fashion_mnist_history.pkl" "models/mlp_fashion_mnist_model.keras" --nepoch 30
    parser = argparse.ArgumentParser(description="Process MNIST data")
    parser.add_argument("data_path", type=str, help="Path to the data file")
    parser.add_argument("output_path", type=str, help="Path to the stored data file")
    parser.add_argument("model_output", type=str, help="Path to the model description")
    parser.add_argument("--nepoch", type=int, default=30, help="Number of epoch")

    args = parser.parse_args()
    DATA_DIR = args.data_path
    OUTPUT_DIR = args.output_path
    MODEL_DIR = args.model_output
    nepoch = args.nepoch

    print(f"Data path provided: {DATA_DIR}")
    print(f"Data were stored: {OUTPUT_DIR}")
    print(f"Model was stored: {OUTPUT_DIR}")
    print(f"The number of epoch: {nepoch}")

    with open(DATA_DIR, "rb") as file:
        X_train, X_val, X_test, Y_train, Y_val, Y_test = pkl.load(file)

    model = keras.models.Sequential(
        [
            keras.layers.Conv2D(
                filters=3,
                kernel_size=7,
                activation="relu",
                padding="SAME",
                input_shape=[28, 28, 1],
            ),
            keras.layers.MaxPooling2D(2),
            keras.layers.Flatten(),
            keras.layers.Dense(units=10, activation="softmax"),
        ]
    )

    print(model.summary())
    print("Total number of the parameters is: ", model.count_params())

    model.compile(
        loss="sparse_categorical_crossentropy", optimizer="sgd", metrics=["accuracy"]
    )

    history = model.fit(X_train, Y_train, epochs=nepoch, validation_data=(X_val, Y_val))

    print("Evaluating the test set:\n")
    model.evaluate(X_test, Y_test)

    with open(OUTPUT_DIR, "wb") as file_obj:
        pkl.dump(history, file_obj)

    model.save(MODEL_DIR)

二、評估模型表現的繪圖碼


import pandas as pd
import matplotlib.pyplot as plt


cnn_df = pd.DataFrame(cnn_history.history)
mlp_df = pd.DataFrame(mlp_history.history)

# Shift the training metrics half an epoch to the left
cnn_df['accuracy'] = cnn_df['accuracy'].shift(-1)
cnn_df['loss'] = cnn_df['loss'].shift(-1)
mlp_df['accuracy'] = mlp_df['accuracy'].shift(-1)
mlp_df['loss'] = mlp_df['loss'].shift(-1)


# Drop the last row as it will have NaN values after the shift
cnn_df = cnn_df.dropna()
mlp_df = mlp_df.dropna()

cnn_df['epoch'] = list(sequence)
mlp_df['epoch'] = list(sequence)

cnn_df['source'] = 'CNN'
mlp_df['source'] = 'MLP'

# Concatenate the DataFrames
combined_df = pd.concat([cnn_df, mlp_df], ignore_index=True)

# Reset index
combined_df.reset_index(drop=True, inplace=True)

import matplotlib.pyplot as plt

# Plot accuracy
plt.figure(figsize=(12, 6))

plt.subplot(1, 2, 1)
for source in combined_df['source'].unique():
    subset = combined_df[combined_df['source'] == source]

    plt.plot(subset['epoch'], subset['accuracy'], '-o', label=f'{source} Training set')
    plt.plot(subset['epoch'], subset['val_accuracy'], '-o', label=f'{source} Validation set')
    plt.xlabel('Epoch')
    plt.ylabel('Accuracy')
    plt.title('Model Accuracy')
    plt.legend()

# Plot loss
plt.subplot(1, 2, 2)
for source in combined_df['source'].unique():
    subset = combined_df[combined_df['source'] == source]

    plt.plot(subset['epoch'], subset['loss'], '-*', label=f'{source} Training set')
    plt.plot(subset['epoch'], subset['val_loss'], '-*', label=f'{source} Validation set')
    plt.title('Model Loss')
    plt.xlabel('Epoch')
    plt.ylabel('Loss')
    plt.legend()

plt.tight_layout()
plt.show()

三、評估誤判的繪圖碼

import numpy as np


cnn_predicted_y_proba = cnn_model.predict(X_test)
mlp_predicted_y_proba = mlp_model.predict(X_test)
cnn_predicted_classes = np.argmax(cnn_predicted_y_proba, axis=1)
mlp_predicted_classes = np.argmax(mlp_predicted_y_proba, axis=1)

# Find the indices of incorrect predictions
cnn_incorrect_indices = np.where(cnn_predicted_classes != Y_test)[0]
mlp_incorrect_indices = np.where(mlp_predicted_classes != Y_test)[0]

common_values = np.intersect1d(mlp_incorrect_indices, cnn_incorrect_indices)
difference_values = np.setdiff1d(mlp_incorrect_indices, cnn_incorrect_indices)
print("Common values:", common_values)

n_rows = 5
n_cols = 10
plt.figure(figsize=(n_cols * 2, n_rows * 2))
for row in range(n_rows):
    for col in range(n_cols):
        index = n_cols * row + col
        incorrect_index = common_values[index]

        image = convert2image_format(X_test[incorrect_index,:])
        label_data = Y_test[incorrect_index]
        clabel = mlp_predicted_classes[incorrect_index]
        mlabel = cnn_predicted_classes[incorrect_index]
        combined_label = f"{label_data} c-{clabel} m-{mlabel}"


        plt.subplot(n_rows, n_cols, index + 1)
        plt.imshow(image, cmap="binary", interpolation="nearest")
        plt.axis('off')
        plt.title(combined_label, fontsize=20)

plt.subplots_adjust(wspace=0.2, hspace=0.5)
plt.tight_layout()

plt.show()

四、同樣模型辨識Fashion MNIST影像的結果

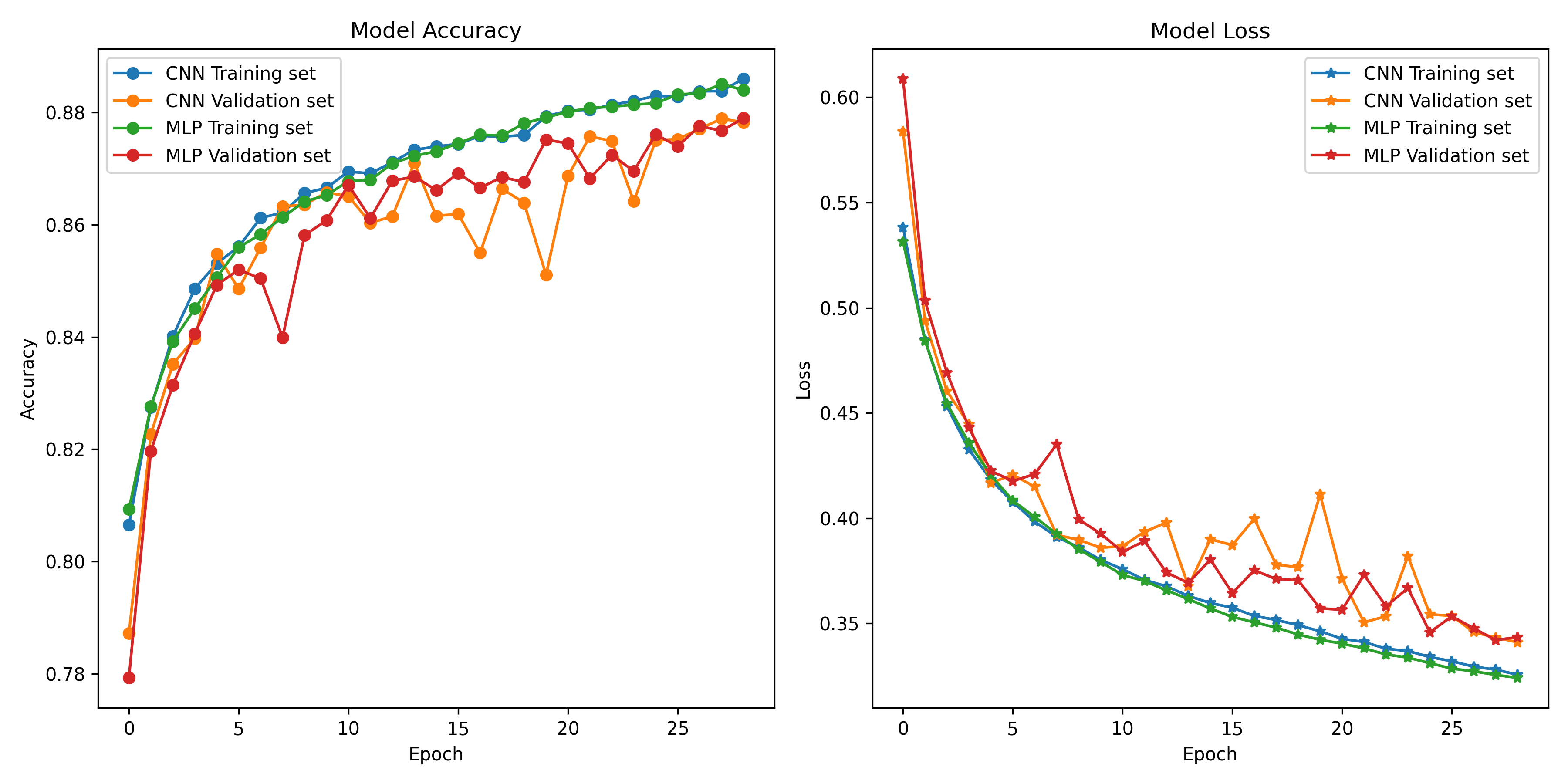

MLP及CNN對測試組的正確率分別是87%和88%,在不改變模型複雜度的情況下兩模型表現相當,即使使用更為複雜的CNN模型正確率也僅來到91%。從另一角度來看,CNN使用了少於MLP一半的參數總量即達到了相近的正確率。

Fashin MNIST
