Perceptron 是類神經網絡最基本的架構之一，它的特性是：

計算方式為輸入向量 (x) 乘上權重向量 (w)，再加上一偏差值 (b)，再經過一轉換方程式 (A)， y = A(x × w^t + b)
在Perceptron中，轉換方程式有時稱為Linear Threshold Unit (LTU)，常用的有Heaviside和sign函數。
步驟1及步驟2會置於一個For loop中重覆施行，每一次遞迴時，調整權重向量的數值，調整的目標是使模型預測值和測試組的資料值之間的距離愈小愈好。

如果輸入向量是一個 1 x 5 的行向量(row vector)，如，x = [1, 1, 1, 1, 1]，此一行代表一個資料樣本，五個欄代表五個特徵值。此時相對應的權重向量若也是一個行向量，w = [-0.002, 0.0059, 0.0078, 0.0194, 0.0170]，我們必須將之行進矩陣轉置 w^t.

如此才能進行矩陣向乘x × w^t 。進行內積後，我們會得到一個1 × 1的矩陣之後，加上單一數值的偏差值 b，便可得到未轉換前的數值，而後此數值再經過LTU轉換，便會得到輸出值。以下是常用的兩個LTU函數。

heavside

或

sgn

和Logistic Regression或線性SVM類似，簡單的Perceptron模型可以用來分類二元資料。

以Iris資料集為範例

讀入iris資料集，我們可以用此資料集的部份資料來示範用Perceptron做二元分類作業。
開始前，我們先做一些基本的資料檢驗。使用table，我們知道此資料集的標的有三個類別： Setosa，Versicolor，Virginica 。
它們分別有50個樣本，所以資料集中總共有150個資料點。

rm(list = ls())
pkg <- c("data.table", "ggplot2", "tidyr)
sapply(pkg, require, character.only = TRUE)

source("Perceptron_class.R")
d <- fread("iris.data")
names(d) <- c("Sepal_len", "Sepal_wid", "Petal_len", "Petal_wid", "y")
d$y <- ifelse(d$y == "Iris-setosa", "Setosa",
ifelse(d$y == "Iris-versicolor", "Versicolor", "Virginica"))
table(d$y)
#  Setosa Versicolor  Virginica
#      50         50         50

使用str顯示資料集的提要。

str(d)
# Classes ‘data.table’ and 'data.frame':  150 obs. of  5 variables:
#  $ Sepal_len: num  5.1 4.9 4.7 4.6 5 5.4 4.6 5 4.4 4.9 ...
#  $ Sepal_wid: num  3.5 3 3.2 3.1 3.6 3.9 3.4 3.4 2.9 3.1 ...
#  $ Petal_len: num  1.4 1.4 1.3 1.5 1.4 1.7 1.4 1.5 1.4 1.5 ...
#  $ Petal_wid: num  0.2 0.2 0.2 0.2 0.2 0.4 0.3 0.2 0.2 0.1 ...
#  $ y        : chr  "Setosa" "Setosa" "Setosa" "Setosa" ...
#  - attr(*, ".internal.selfref")=<externalptr>

在此例中，我們僅取前100個樣本來展示，使用花萼長及花瓣長等二項特徵來訓練模型。因為資料集是依目標變項，y的類別排序，前100個樣本必然是Setosa及Versicolor。注意d是data frame的資料格式，所以我們必須將X及y轉換為矩陣以便運算，並將y的類別資料型態轉換數值資料型態Setosa為0，其他為1。在此文件最後可以找到我所撰寫的Perceptron的S4類別，它的內部使用矩陣運算。

ntrain <- 100
X <- as.matrix(d[1:ntrain, c("Sepal_len", "Petal_len")])
y <- as.matrix( ifelse(d[1:ntrain, "y"] == "Setosa", 0, 1) )
# X is a 100 x 2 matrix; y is a 100 x 1 vector.

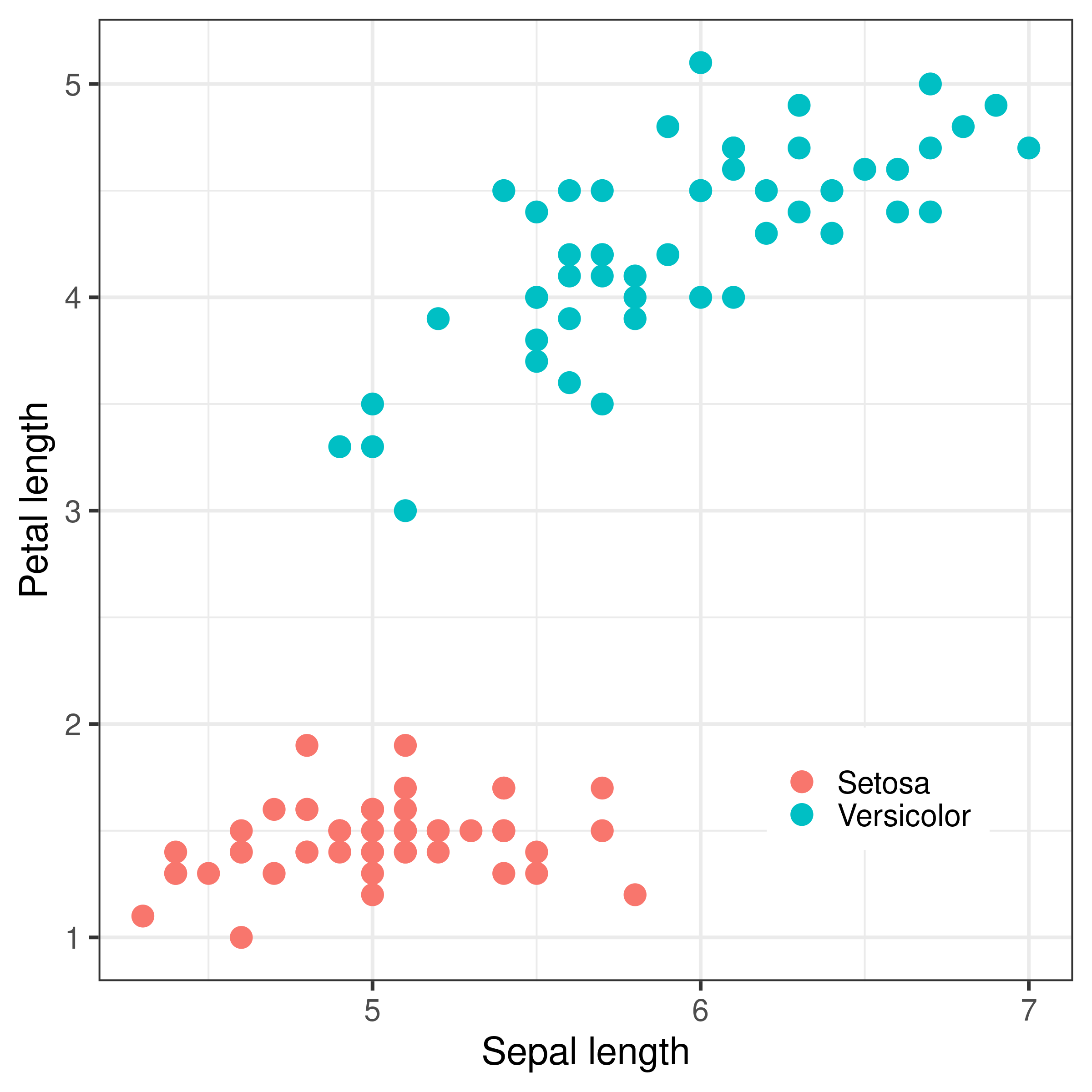

下圖顯示Setosa及Versicolor依據花萼長及花瓣長的樣本分布。

p0 <- ggplot(data = d[1:ntrain, c(1, 3, 5)]) +
  geom_point(aes(x = Sepal_len, y = Petal_len, colour = y),
    size = 5) +
  scale_y_continuous(breaks = seq(0, 6, 1)) +
  scale_x_continuous(breaks = seq(4, 7, 1)) +
  labs(x = "Sepal length", y = "Petal length") +
  theme_bw(base_size = 20) +
  theme(legend.position = c(.8, .20),
  legend.title = element_blank())

png("figures/p0.png", width = 4, height = 4, units = "in", res = 300)
p0
dev.off()

Iris

直接使用Perceptron類別運算。

pnn <- Perceptron(n_iter = 10, random_state = 1)
pnn_model <- fit(pnn, X, y)

以下說明Perceptron的程式碼實驗Perceptron演算的詳細過程。

Perceptron的演算過程

第一，我們從X變項(又程特徵值)中讀取樣本數及特徵數。

n_sample  <- dim(X)[1]
n_feature <- dim(X)[2]

第二，使用者決定進行10次迴圈。

pnn <- Perceptron(n_iter = 10)
pnn

# An object of class "Perceptron"
# Slot "w_":
#      [,1]
# [1,]   NA
#
# Slot "eta":
# [1] 0.1
#
# Slot "n_iter":
# [1] 10
#
# Slot "random_state":
# [1] 123
#
# Slot "b_":
# [1] 0
#
# Slot "errors_":
# numeric(0)
#
# Slot "weight_evolutions":
# list()
#
# Slot "bias_evolutions":
# list()

Perceptron的內部程式碼，一開始會準備尚未有數值，或是數值為0的記憶體位置來儲存：權重、偏差、估計誤差的矩陣或向量數值，此例中，我額外地準備權重及偏差的list，來檢驗演算的過程，實用上，我們通常會釋放這些最後不會用到的記憶體空間。

pnn@w_ <- matrix(rnorm(n_feature, 0, 0.01))
pnn@b_ <- 0.0
pnn@errors_ <- numeric(pnn@n_iter)
pnn@weight_evolutions <- vector("list", pnn@n_iter)
pnn@bias_evolutions <- vector("list", pnn@n_iter)

Perceptron逐次地運算每一個遞迴，而每一次遞迴則個別地計算每一個樣本的輸入值，之後更新它的權重及偏差值，所以計算後每一個樣本會有它們個別的權重及偏差值，總共有10組數值，因為使用者指定了10次遞迴，最終一次遞迴視為最佳值。

for (i in seq_len(pnn@n_iter)) {
    errors <- 0
    weight_evolution <- matrix(NA, nrow = n_sample, ncol = n_feature)
    bias_evolution <- numeric(n_sample)

    for (j in seq_len(n_sample)) {
        xi <- X[j, ]
        yi <- y[j]

        # The regression function (net_input)
        output0 <- xi %*% pnn@w_ + pnn@b_

        # The unit step function
        output1 <- ifelse(output0 >= 0, 1, 0)

        # error: 0 - 1 (decrease weights), 1 - 0 (increase weights)
        # correct: 0 - 0, 1 - 1
        # eta: learning rate
        difference <- yi - as.numeric(output1)
        update <- pnn@eta * difference

        # Update the weights and bias
        pnn@w_ <- pnn@w_ + matrix(update * xi, nrow = n_feature)
        pnn@b_ <- pnn@b_ + update

        # Count the number of error predictions in a pass (aka epoch)
        # So the denominator is the number of samples (in a training set)
        errors <- errors + ifelse(update != 0.0, 1, 0)

        # Record the evolution of the weights and bias
        weight_evolution[j, ] <- pnn@w_
        bias_evolution[j] <- pnn@b_
    }
    pnn@errors_[i] <- errors
    pnn@weight_evolutions[[i]] <- weight_evolution
    pnn@bias_evolutions[[i]] <- bias_evolution
}

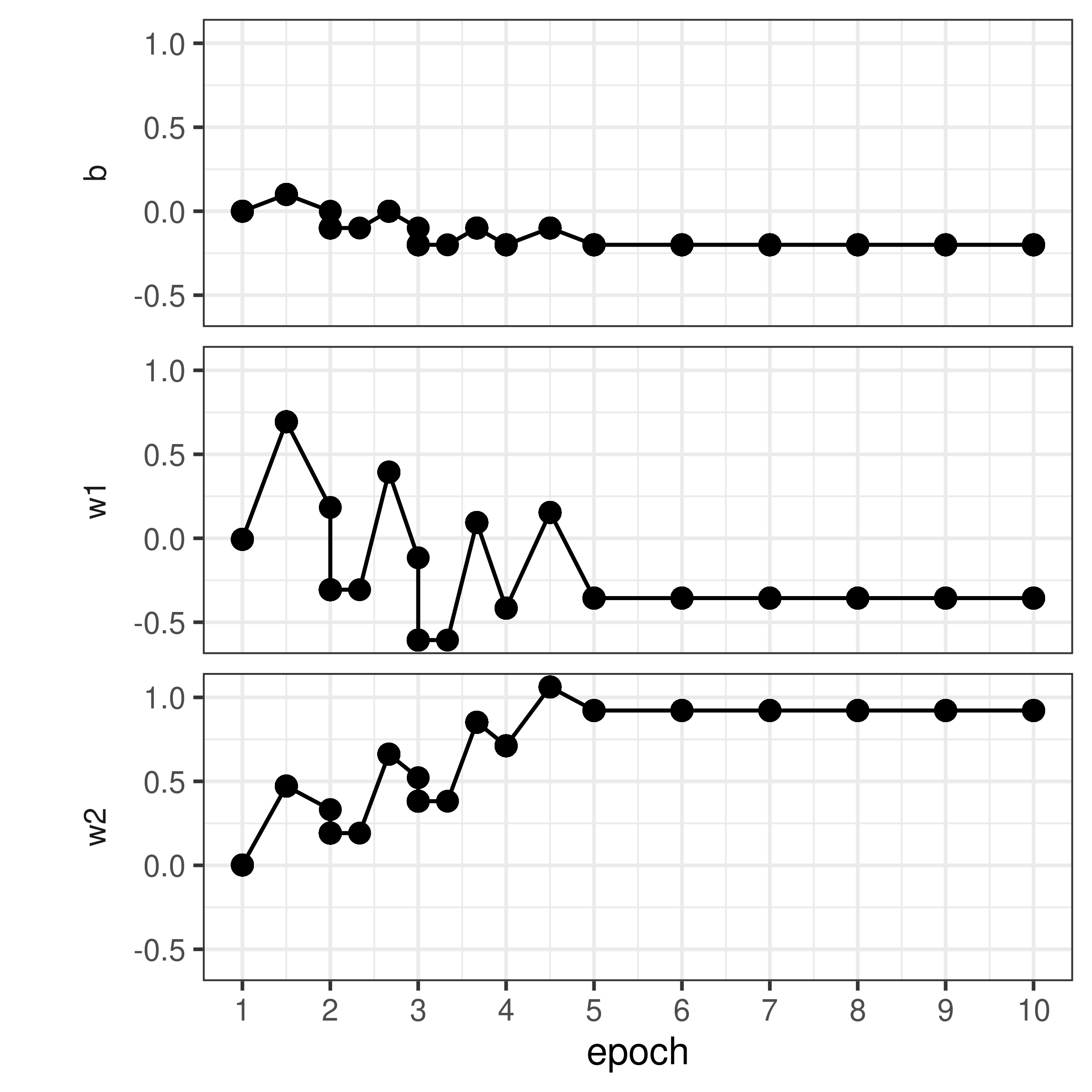

下圖顯示，特徵一和特徵二和偏差值在每一次遞迴的變化，至第五次遞迴數值逐漸穩定。 Perceptron

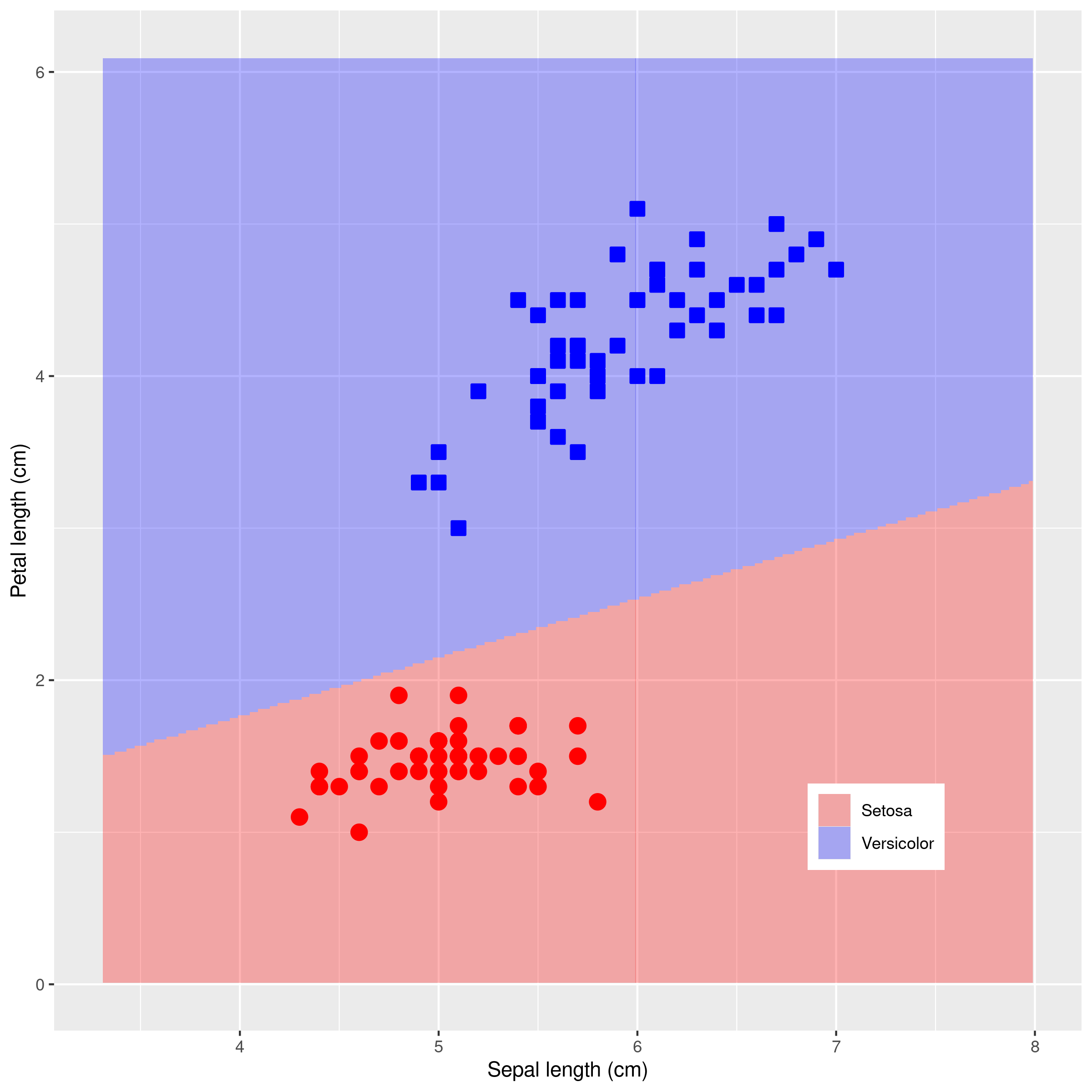

最後我們來檢示在萼長0至八公分及瓣長0至六公分的空間裡，Perceptron模型的預測，兩色交會處剛好是決策線。 Boundary

Perceptron的程式碼

# Create a Perceptron class
Perceptron <- setClass(
  Class = "Perceptron",
  representation(
    w_ = "matrix",
    eta = "numeric",
    n_iter = "numeric",
    random_state = "numeric",
    b_ = "numeric",
    errors_ = "numeric",
    weight_evolutions = "list",
    bias_evolutions = "list"
  ),
  prototype(
    w_ = matrix(),
    eta = 0.1,
    n_iter = 10,
    random_state = 123,
    b_ = 0.0,
    errors_ = numeric(),
    weight_evolutions = list(),
    bias_evolutions = list()
  )
)


setGeneric("fit", function(object, ...) {
  warning("Class ", class(object), " has not defined a fit method")
  return(NULL)
})

setGeneric("predict", function(object, ...) {
  warning("Class ", class(object), " has not defined a predict method")
  return(NULL)
})

setGeneric("net_input", function(object, ...) {
  warning("Class ", class(object), " has not defined a net_input method")
  return(NULL)
})

setMethod("fit", "Perceptron", function(object, X, y) {
  set.seed(object@random_state)
  n_sample <- dim(X)[1]
  n_feature <- dim(X)[2]

  object@w_ <- matrix(rnorm(n_feature, 0, 0.01))
  object@b_ <- 0.0
  object@errors_ <- numeric(object@n_iter)
  object@weight_evolutions <- vector("list", object@n_iter)
  object@bias_evolutions <- vector("list", object@n_iter)


  for (i in seq_len(object@n_iter)) {
    errors <- 0
    weight_evolution <- matrix(NA, nrow = n_sample, ncol = n_feature)
    bias_evolution <- numeric(n_sample)

    for (j in seq_len(n_sample)) {
      xi <- X[j, ]
      yi <- y[j]

      # Convert update back to a vector
      update <- c(object@eta * (yi - predict(object, xi)))
      object@w_ <- object@w_ + update * xi
      object@b_ <- object@b_ + update
      errors <- errors + ifelse(update != 0.0, 1, 0)
      weight_evolution[j, ] <- object@w_
      bias_evolution[j] <- object@b_

    }
    object@errors_[i] <- errors
    object@weight_evolutions[[i]] <- weight_evolution
    object@bias_evolutions[[i]] <- bias_evolution
  }
  return(object)
})


setMethod(
  "net_input", signature(object = "Perceptron"),
  function(object, X) {
    if (any(is.na(object@w_))) {
      stop("Fit the model first")
    }
    return(X %*% object@w_ + object@b_)
  }
)

setMethod(
  "predict", signature(object = "Perceptron"),
  function(object, X) {
    ### Return class label after unit step ###
    return(ifelse(net_input(object, X) >= 0.0, 1, 0))
  }
)

plot_decision_regions <- function(X, y, classifier, resolution = 0.02) {
  markers <- c(21, 22, 24, 25, 23)
  colors <- c("red", "blue", "lightgreen", "gray", "cyan")
  ny <- length(unique(y))
  cmap <- colors[1:ny]

  x1_min <- min(X[, 1]) - 1
  x1_max <- max(X[, 1]) + 1
  x2_min <- min(X[, 2]) - 1
  x2_max <- max(X[, 2]) + 1
  xx1 <- seq(x1_min, x1_max, by = resolution)
  xx2 <- seq(x2_min, x2_max, by = resolution)
  grid <- expand.grid(xx1, xx2)
  colnames(grid) <- colnames(X)
  grid_data <- as.data.frame(grid)

  predicted_label <- predict(classifier, as.matrix(grid))
  plab <- as.factor(ifelse(predicted_label == 0, "Setosa", "Versicolor"))

  plot <- ggplot() +
    geom_tile(
      data = grid_data,
      aes(Sepal_len, Petal_len, fill = plab), alpha = 0.3
    ) +
    scale_fill_manual(values = cmap) +
    xlim(x1_min, x1_max) +
    ylim(x2_min, x2_max) +
    xlab("Sepal (cm)") +
    ylab("Petal_len (cm)")

  plot <- plot + geom_point(
    data = as.data.frame(X[y == unique(y)[1], ]),
    aes(
      x = X[y == unique(y)[1], 1],
      y = X[y == unique(y)[1], 2]
    ),
    color = colors[1], size = 3, shape = markers[1], fill = colors[1], stroke = 1
  )

  plot <- plot + geom_point(
    data = as.data.frame(X[y == unique(y)[2], ]),
    aes(
      x = X[y == unique(y)[2], 1],
      y = X[y == unique(y)[2], 2]
    ),
    color = colors[2], size = 3, shape = markers[2], fill = colors[2], stroke = 1
  )
  plot <- plot + theme(
    legend.position = c(.8, .20),
    legend.title = element_blank()
  )

  print(plot)
  return(plot)
}

Perceptron 計算過程的視覺化碼


rm(list = ls())
pkg <- c("tidyr", "ggplot2")
sapply(pkg, require, character.only = TRUE)

d4 <- NULL

for (i in seq_len(pnn_model@n_iter)) {
  w1 <- pnn_model@weight_evolutions[[i]][, 1]
  w2 <- pnn_model@weight_evolutions[[i]][, 2]
  nchange <- length(unique(w1))

  if (nchange == 1) {
    epoch_code <- i
  }

  if (nchange == 2) {
    epoch_code <- c(rep(i, table(w1)[1]), rep(i + 0.5, table(w1)[2]))
  }
  if (nchange == 3) {
    epoch_code <- c(
      rep(i, table(w1)[1]),
      rep(i + 1 / 3, table(w1)[2]),
      rep(i + 2 / 3, table(w1)[3])
    )
  }

  dtmp <- data.frame(
    w1 = as.vector(t(pnn_model@weight_evolutions[[i]][, 1])),
    w2 = as.vector(t(pnn_model@weight_evolutions[[i]][, 2])),
    b = as.vector(pnn_model@bias_evolutions[[i]]),
    epoch = epoch_code
  )

  d4 <- rbind(d4, dtmp)
}


d4_2 <- d4 %>%
  pivot_longer(cols = c(w1, w2, b), names_to = "param", values_to = "y")

p1 <- ggplot(d4_2) +
  geom_point(aes(x = epoch, y = y), size = 5) +
  geom_line(aes(x = epoch, y = y), size = 1) +
  scale_x_continuous(breaks = seq(0, 10, 1)) +
  facet_grid(param~., switch = "y") +
  ylab("") +
  theme_bw(base_size = 20) +
  theme(legend.position = c(.8, .20),
  legend.title = element_blank(),
  strip.placement = "outside",
   strip.background = element_blank())

png("figures/p1.png", width = 8, height = 8, units = "in", res = 300)
print(p1)
dev.off()
